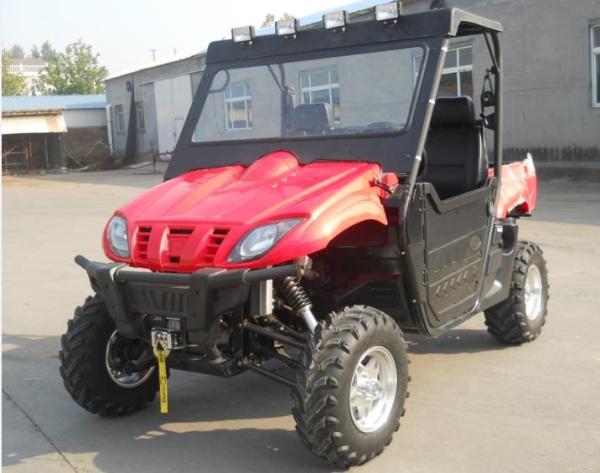

Model:China UTV1000CC(Diesel)

Approve mode:EEC EPA DOT
Product Description:
(1)Engine Make:Daihatsu 1.0L(0.7/0.8L) Diesel
(2)Type:3-cylinder, Water & Oil cooled, 4-stroke, Swirl
(3)Compression ratio :21.5 : 1
(4)Horsepower Rate Power : 17.5 kw/3600 r/min.
(5)Transmission: Automatic CVT , 4x4
(6)Gear selection; CVT - R N L H
(7)Wheels, Drive System: 2WD/4WD Switch, Shaft Drive, Electronic diff. locks
(8)Engine Starting: Electric start
(9)Top Speed: In high gear range 60 km/h, In low gear range 35 km/h
(10)Brake Front / Rear: Hydraulic discs with Booster
(11)Braking Distance: Less than 7M at 30 km/h
(12)Steering: Rack and Pinion
(13)Fuel Capacity: 29 L
(14)Suspension: Front Independent Mac-Pherson Strut Rear Independent dual A-arm
(15)Dimension: L x W x H 3160mm x 1550mm x 1950mm
Front tread center 1230mm
Rear tread center 1330mm
(16)Wheelbase: 2095mm
(17)Ground clearance: 300mm
(18)Turning diameter: 10 M
(19)Towing capacity: 910 kg (2006 lbs)
(20)Payload capacity: 500 kg (1102 lbs)
(21)Fuel consumption: On road 6L / 100km
Off road 10L / 100km
(22)Weight ( unloaded): 750 kg (1653 lbs)
(23)Cargo Bed: Width x Length 1500mm x 1350mm Volume: 0.7 M3
Bed deep 365mm
Cargo bed load 500 kg
(24)Sound Level, at Operator's Ear db. (a): 82 dB.
(25)Tires Front / Rear AT25x8-12 / AT25x10-12
(26)Single Packaging size : 297 x 159 x 112 cm
(27)Single Gross Weight : 1123.00 kg
(28)20ft Container : 4 units
(29)40ft Container : 8 units

Our company Shanghai Xinda Vehicle Co.,Ltd was established in China in 2010 working to provide manufactured power sports Chinese ATV, Chinese motorcycles, Chinese scooters, Chinese dirt bikes, Chinese quads and Chinese mopeds products which are mnaufcatured in china for our clients worldwide. We are committed in providing the highest level of service and vehicle manufacturing to our customers worldwide. Our staff members work with each and every individual customer closely to establish a long term business relationship with them. We are here to provide you with the best and top most only service possible in the industry today.

After over 4 years in the manufacturing industry we have learned what the customer wants and needs in the power sports Chinese motorcycle, Chinese scooter, Chinese dirt bike, Chinese quad and Chinese moped industry. Our factories each have high tech testing areas to make sure that each vehicle comes with no manufacture defects.
