Model:

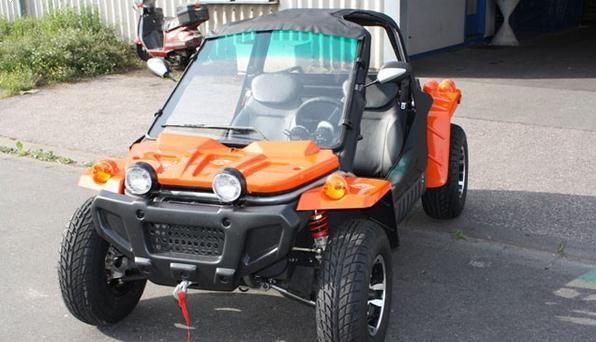

China Go cart300CC01

Approve mode:EEC EPA DOT
Product Description:
(1)ENGINE TYPE Single cylinder,4 Stroke, Water Cooled
(2)MAX.POWER(KW/rpm) 14KW/7000rpm
(3)MAX.TORQUE(NM/rpm) 20N.M/5500rpm
(4)MAX.SPEED 60KM/h
(5)BORE STROKE 72.5mm × 66.8mm
(6)DISPLACEMENT 300/450CC
(7)COMPRESSION RATIO 10.3:1
(8)CARBURETOR CVK052
(9)LUBRICATE Combined force-feed and splash lubrication
(10)AIR FILTER TYPE Dry Air Filter Net
(11)SPARK PLUG DR8EA
(12)IGNITIOIN C.D.I
(13)STARTING Electric Start
(14)STARTING PROCEDURE Turn Electric Lock
(15)GEARSHIFT Manual
(16)TRANSMISSION Automatic CVT
(17)FINAL DRIVE SYSTEM 2W/Shaft
(18)BRAKE FRONT Hydraulic disc brake
(19)BRAKE REAR Hydraulic disc brake
(20)BRAKE DISTANCE 7m/30km/h
(21)FRONT SUSPENSION Double Swing Arm (Mcpherson front suspension)
(22)REAR SUSPENSION Indepentent rear suspension with double swing arm
(23)SHOCK ABSORBER(F) Double
(24)SHOCK ABSORBER(R) Double
(25)BATTERY 12V/20A
(26)ENGINE OIL 1.5L
(27)TRANSMISSION OIL 0.65L
(28)REAR OIL ——
(29)FUEL 90# unleaded gasoline
(30)FUEL CAPACITY 20L
(31)TURNING RADIUS 3800mm
(32)MAX.LOAD(kgs/lbs) 156kg
(33)FRONT TIRE 25×8-12
(34)REAR TIRE 25×8-12
(35)WHEEL MATERIAL Aluminium alloy
(36)OVERALL 2700×1470×1440mm
(37)CARTONE SIZE (L/M/H) 2520×1500×710mm
(38)PACKAGE40HQ`(SET) 23pcs
(39)WHEELBASE(mm) 2005mm
(40)SEAT HEIGHT(mm) 500mm
(41)GROUND CLEARANCE 250mm
(42)NET WEIGHT(kgs/lbs) 370kgs
(43)OPTIONAL ACCESSORIES Winch
