Model:

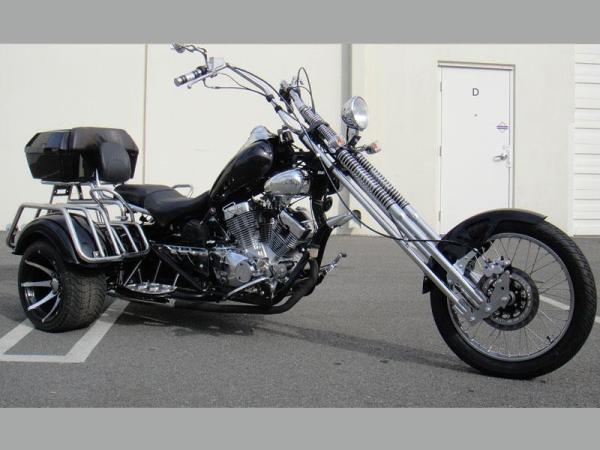

China Chopper250CC07
Approve mode:EEC EPA DOT
Product Description:
(1)Engine Type: V-Twin cylinder
(2)Transmission System: shaft driving
(3)Bore x Stroke (mm): 49*66
(4)Piston Displacement (cc): 250
(5)Compression Ratio: 10: 01
(6)Maximum Power (kw/r/min): 12kw/8400r/min
(7)Maximum Torque (N. M. /rpm): 17.5N. M/6000r
(8)Starter System: electric start
(9)Overall Length (mm): 2500
(10)Overall Width (mm): 1220
(11)Overall Hight (mm): 1280
(12)Wheel Base (mm): 2200
(13)Min. Turning Radius (m): ?3.5
(14)Ground Clearance (mm): 175
(15)Rider Capacity: 2
(16)Brake (Front/Rear): Disc brake
(17)Tyre, Front: 110/90-16
(18)Tyre, Rear: 195/155 R15
(19)Ignition Type: CDI
(20)Engine Oil Capacity (L): 13
(21)Climb Capacity(0c ): 45
(22)Front Suspension: reverse suspension
(23)Rear Suspension: spring
(24)Max. Speed (km/h): 90
(25)G. W: 246KGS
(26)N. W: 296KGS
(27)Battery: 12V/14AH
(28)Cooling system: cooling
(29)Carburetor: mikuni/BDS26
(30)Clutch: wet multi-plate
(31)Low gear ratio: 0.821
(32)Hight gear ratio: 2.642
(33)Packing size(mm) 2255*1255*785
(34)Container: 20/40/40HQ 8/18/27pcs
